Terminal Boot Process (Saltboot Diagram)

The saltboot process involves the Uyuni Server, a terminal running the saltboot initrd, and the branch server providing the saltboot services to the terminal.

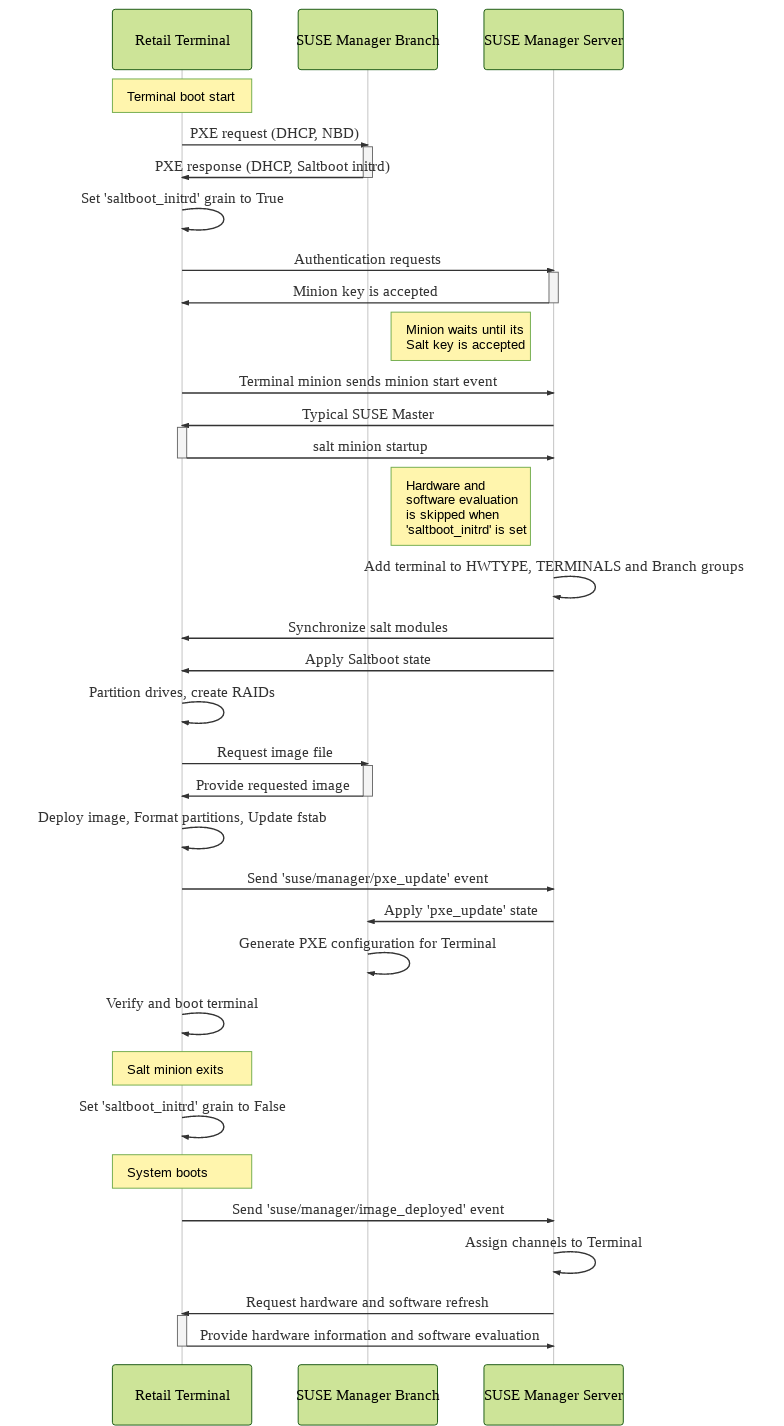

This sequence diagram explains how the three components interact with each other to boot a terminal.

saltboot sequence
