system


Description

The list of systems managed by a Uyuni instance

Columns

Column Type Size Nulls Auto Default Children Parents Comments
mgm_id numeric 131089 null
systemaction.mgm_id systemaction_system_fkeyR
systemchannel.mgm_id systemchannel_system_fkeyR
systemconfigchannel.mgm_id systemconfigchannel_system_fkeyR
systemcustominfo.mgm_id systemcustominfoR
systementitlement.mgm_id systementitlement_system_fkeyR
systemerrata.mgm_id systemerrata_system_fkeyR
systemgroupmember.mgm_id systemgroupmember_system_fkeyR
systemhistory.mgm_id systemhistory_system_fkeyR
systemnetinterface.mgm_id systemnetinterface_system_fkeyR
systemoutdated.mgm_id systemoutdated_system_fkeyR
systempackageinstalled.mgm_id systempackageinstalled_system_fkeyR
systempackageupdate.mgm_id systempackageupdate_system_fkeyR
systemvirtualdata.mgm_id systemvirtualdata_virtual_system_fkeyR
xccdscanresult.mgm_id xccdscanresult_system_fkeyR

The id of the Uyuni instance that contains this data
system_id numeric 131089 null
systemaction.system_id systemaction_system_fkeyR
systemchannel.system_id systemchannel_system_fkeyR
systemconfigchannel.system_id systemconfigchannel_system_fkeyR
systemcustominfo.system_id systemcustominfoR
systementitlement.system_id systementitlement_system_fkeyR
systemerrata.system_id systemerrata_system_fkeyR
systemgroupmember.system_id systemgroupmember_system_fkeyR
systemhistory.system_id systemhistory_system_fkeyR
systemnetinterface.system_id systemnetinterface_system_fkeyR
systemoutdated.system_id systemoutdated_system_fkeyR
systempackageinstalled.system_id systempackageinstalled_system_fkeyR
systempackageupdate.system_id systempackageupdate_system_fkeyR
systemvirtualdata.host_system_id systemvirtualdata_host_system_fkeyR
systemvirtualdata.virtual_system_id systemvirtualdata_virtual_system_fkeyR
xccdscanresult.system_id xccdscanresult_system_fkeyR

The id of the system
profile_name varchar 128 √ null

The unique descriptive name of the system
hostname varchar 128 √ null

The hostname that identifies this system
minion_id varchar 256 √ null

The identifier of the minion, if the system is a Salt Minion
minion_os_family varchar 32 √ null

The family of the operating system, if the system is a Salt Minion
minion_kernel_live_version varchar 255 √ null

The current live kernel version, if the system is a Salt Minion
machine_id varchar 256 √ null

The identifier of the machine
registered_by varchar 64 √ null

The user account who onboarded this system
registration_time timestamptz 35,6 √ null

When this system was onboarded
last_checkin_time timestamptz 35,6 √ null

When this system was visible and reachable last time
kernel_version varchar 64 √ null

The version of the kernel installed on this system
architecture varchar 64 √ null

The architecture of the system
is_proxy bool 1 false

True if this system is a Uyuni Proxy instance
proxy_system_id numeric 131089 √ null

The id of the Uyuni proxy that this system is connected to, if any
is_mgr_server bool 1 false

True of this system is a Uyuni instance
organization varchar 128 √ null

The organization that owns this data
hardware text 2147483647 √ null

A brief description of the hardware specification of this system
machine varchar 64 √ null

The machine on which this system is located
rack varchar 64 √ null

The rack on which this system is located
room varchar 32 √ null

The room where this system is located
building varchar 128 √ null

The building where this system is located
address1 varchar 128 √ null

The first row of the address where this system is located
address2 varchar 128 √ null

The second row of the address where this system is located
city varchar 128 √ null

The city where this system is located
state varchar 60 √ null

The state where this system is located
country varchar 2 √ null

The country where this system is located
synced_date timestamptz 35,6 √ CURRENT_TIMESTAMP

The timestamp of when this data was last refreshed.

Indexes

Constraint Name Type Sort Column(s)
system_pk Primary key Asc/Asc mgm_id + system_id
system_profile_name_idx Performance Asc profile_name

Check Constraints

Constraint Name Constraint
vn_system_minion_os_family (((minion_os_family)::text <> ''::text))
vn_system_address1 (((address1)::text <> ''::text))
vn_system_building (((building)::text <> ''::text))
vn_system_minion_id (((minion_id)::text <> ''::text))
vn_system_registered_by (((registered_by)::text <> ''::text))
vn_system_hostname (((hostname)::text <> ''::text))
vn_system_city (((city)::text <> ''::text))
vn_system_country (((country)::text <> ''::text))
vn_system_state (((state)::text <> ''::text))
vn_system_architecture (((architecture)::text <> ''::text))
vn_system_room (((room)::text <> ''::text))
vn_system_machine (((machine)::text <> ''::text))
vn_system_rack (((rack)::text <> ''::text))
vn_system_machine_id (((machine_id)::text <> ''::text))
vn_system_minion_kernel_live_version (((minion_kernel_live_version)::text <> ''::text))
vn_system_kernel_version (((kernel_version)::text <> ''::text))
vn_system_profile_name (((profile_name)::text <> ''::text))
vn_system_organization (((organization)::text <> ''::text))
vn_system_address2 (((address2)::text <> ''::text))

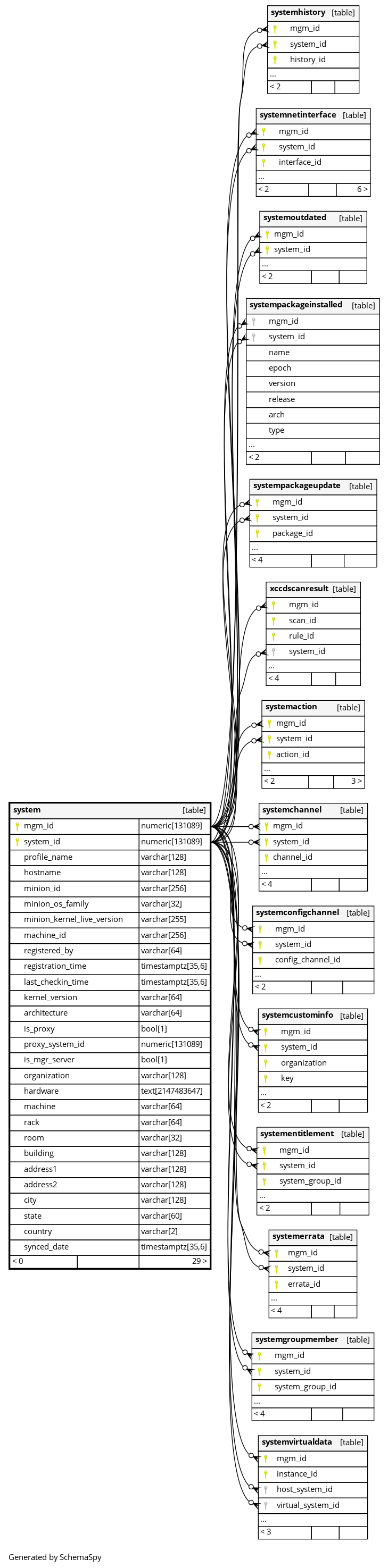

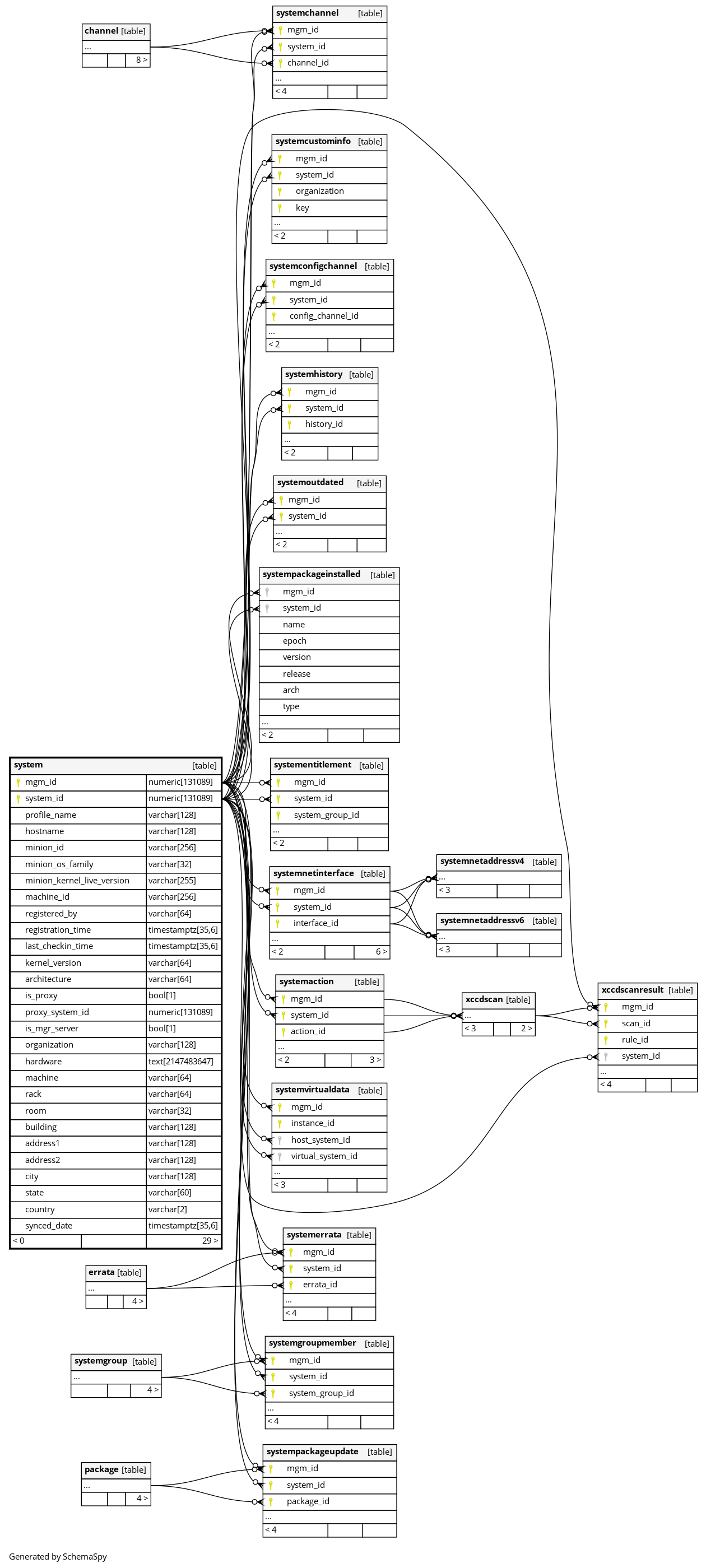

Relationships

Close relationships within degrees of separation
